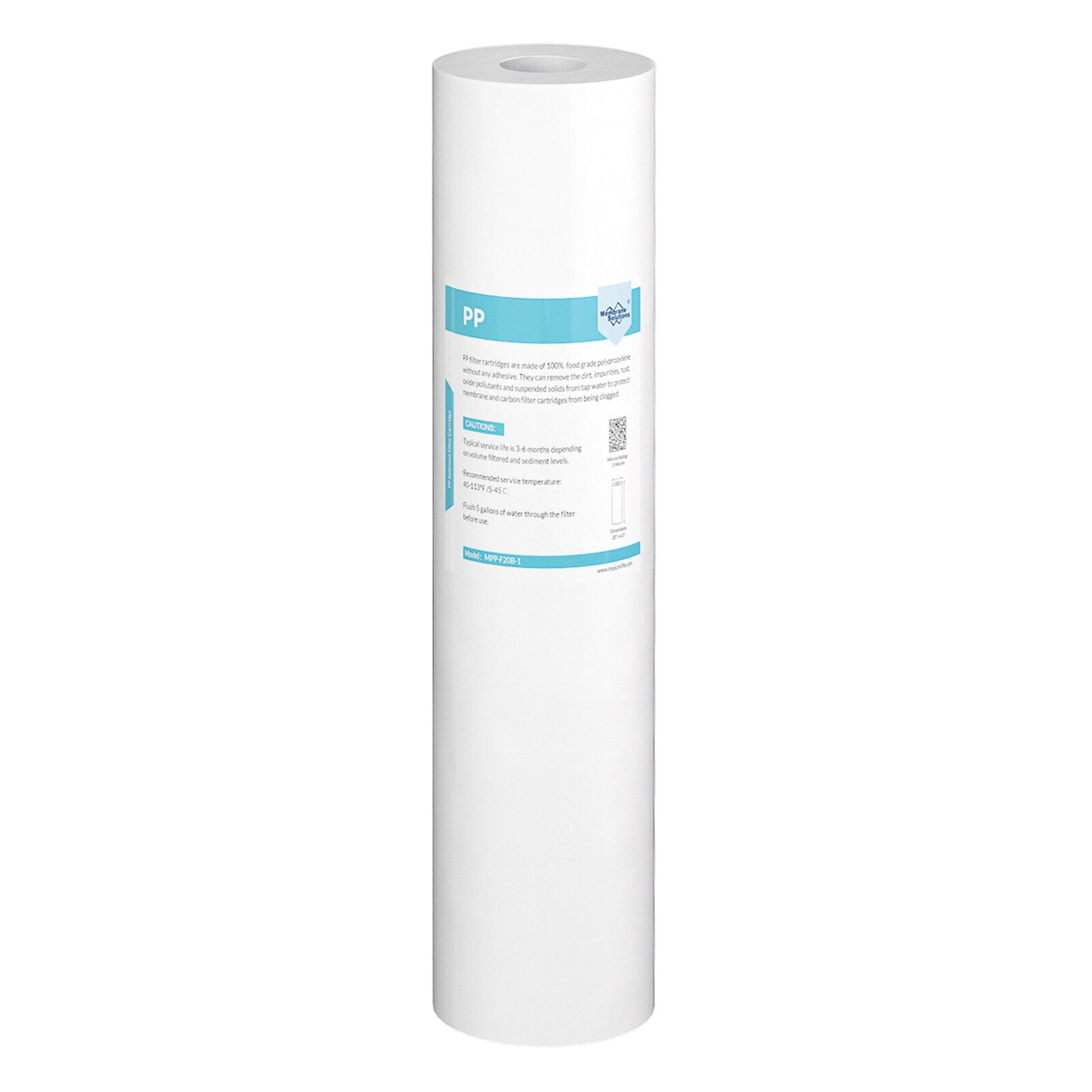

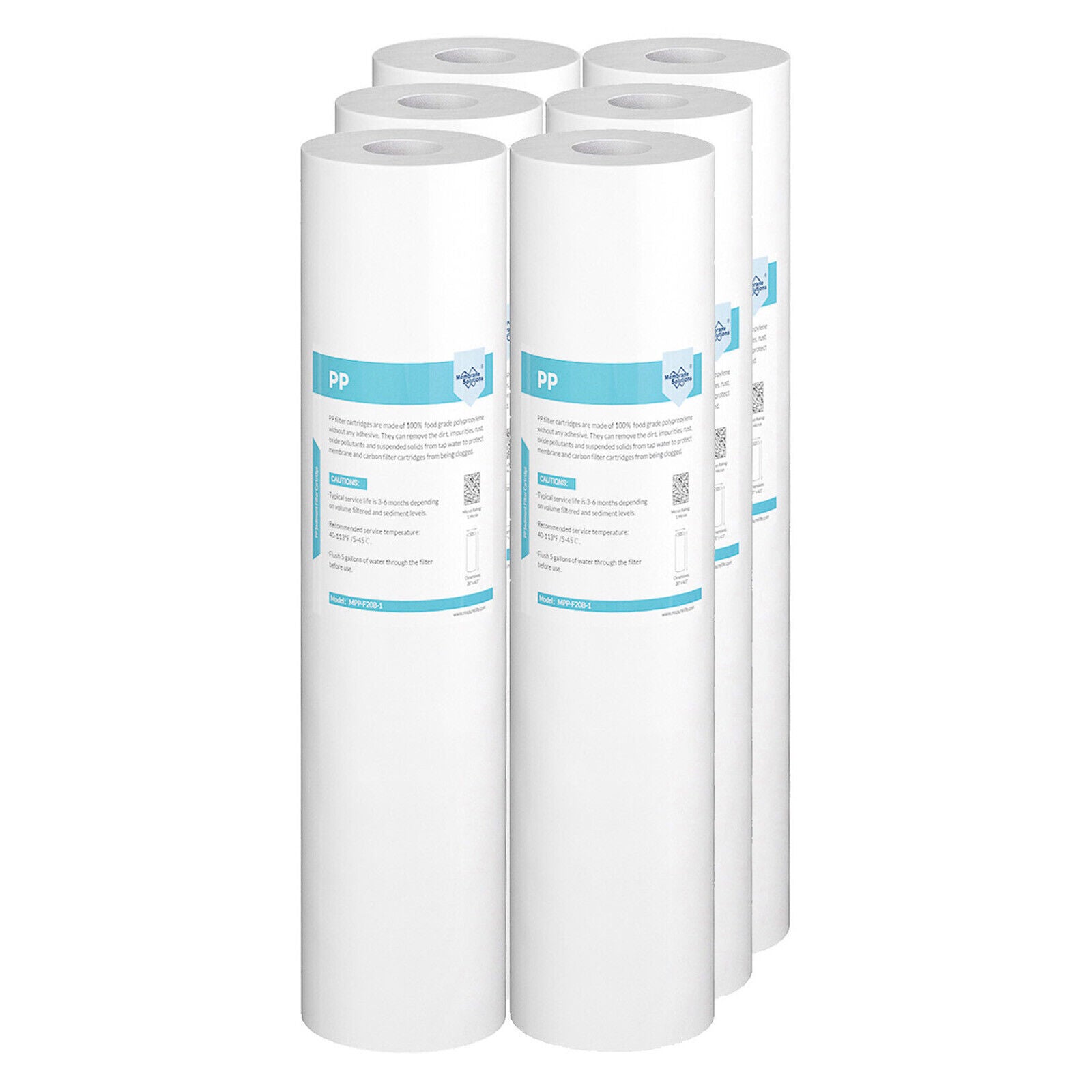

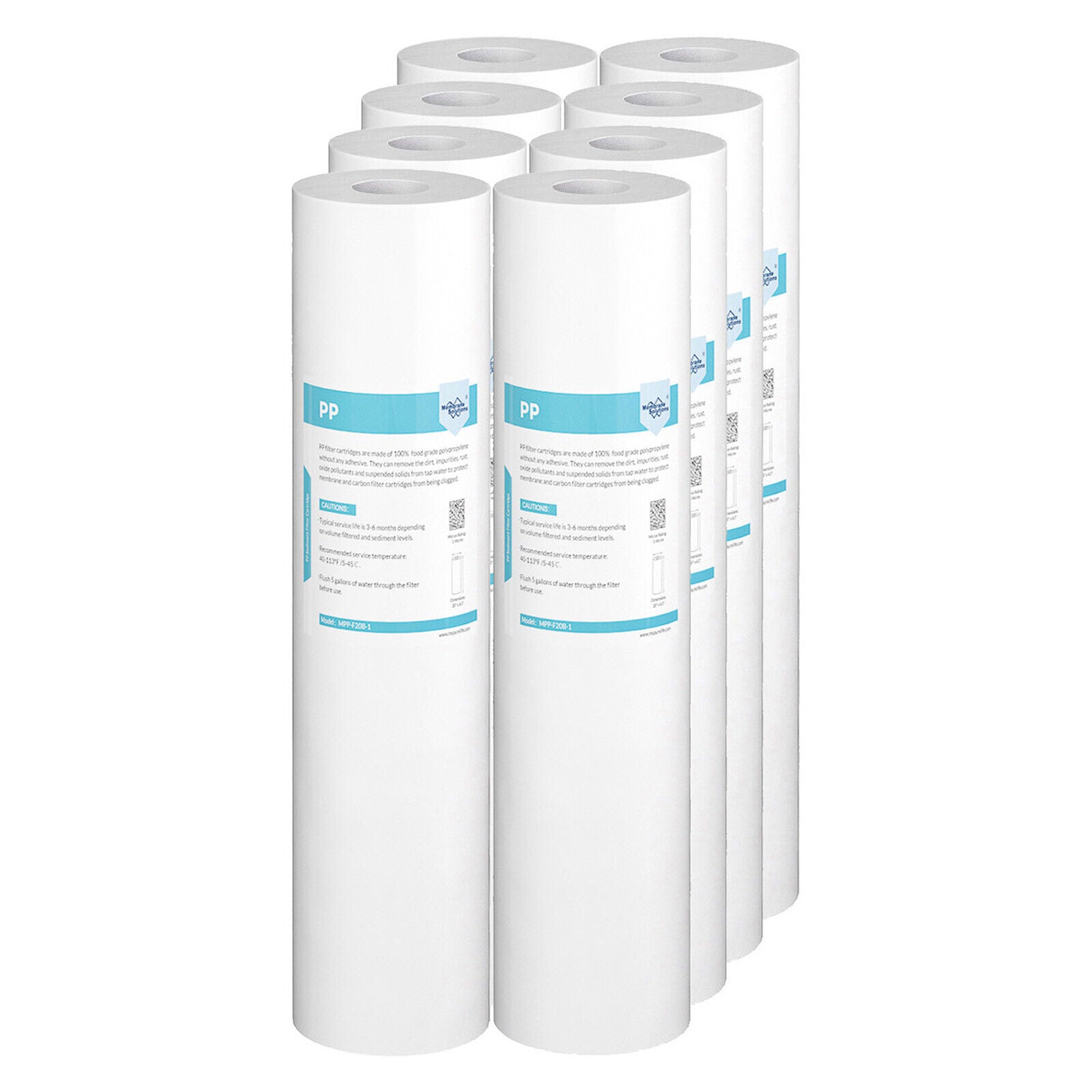

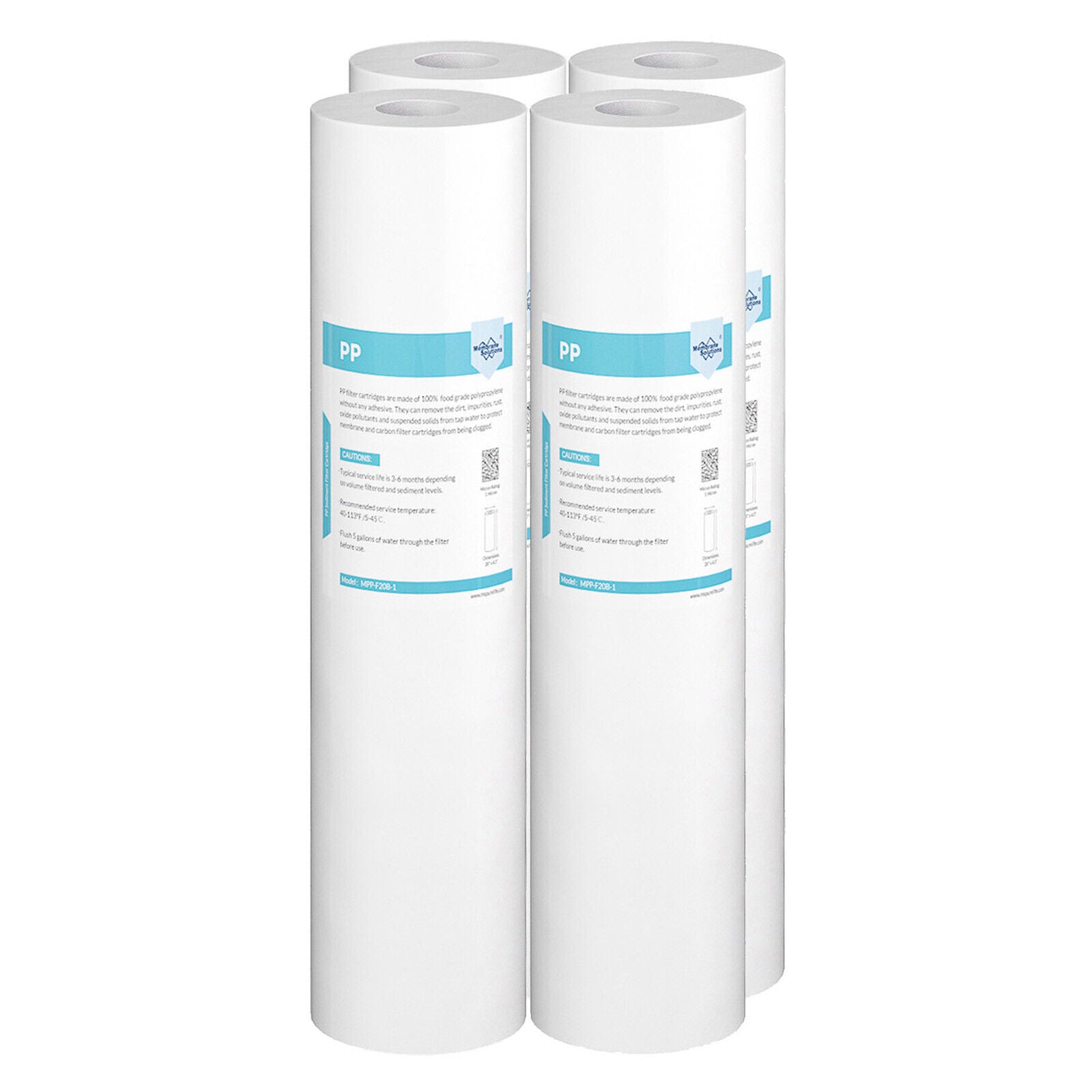

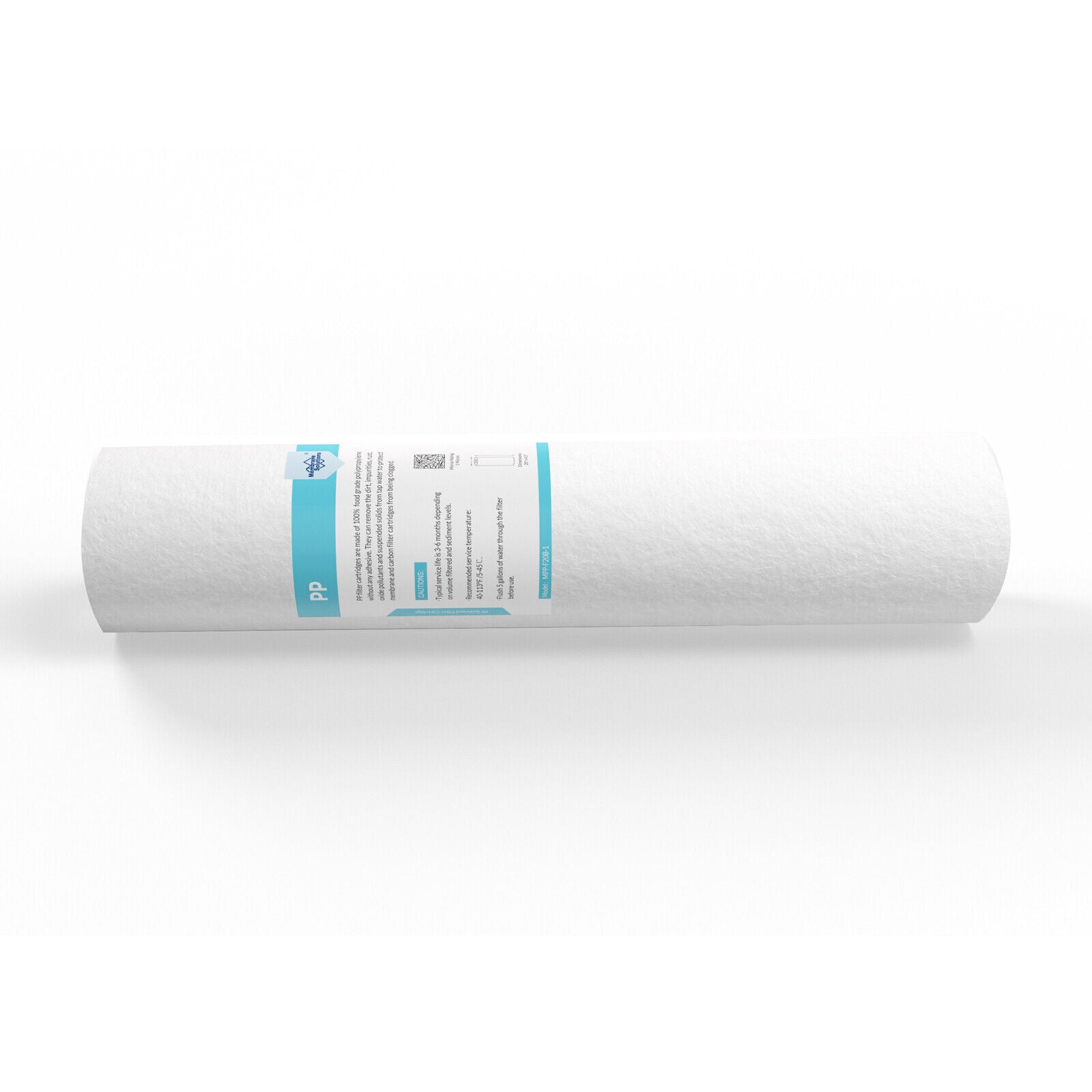

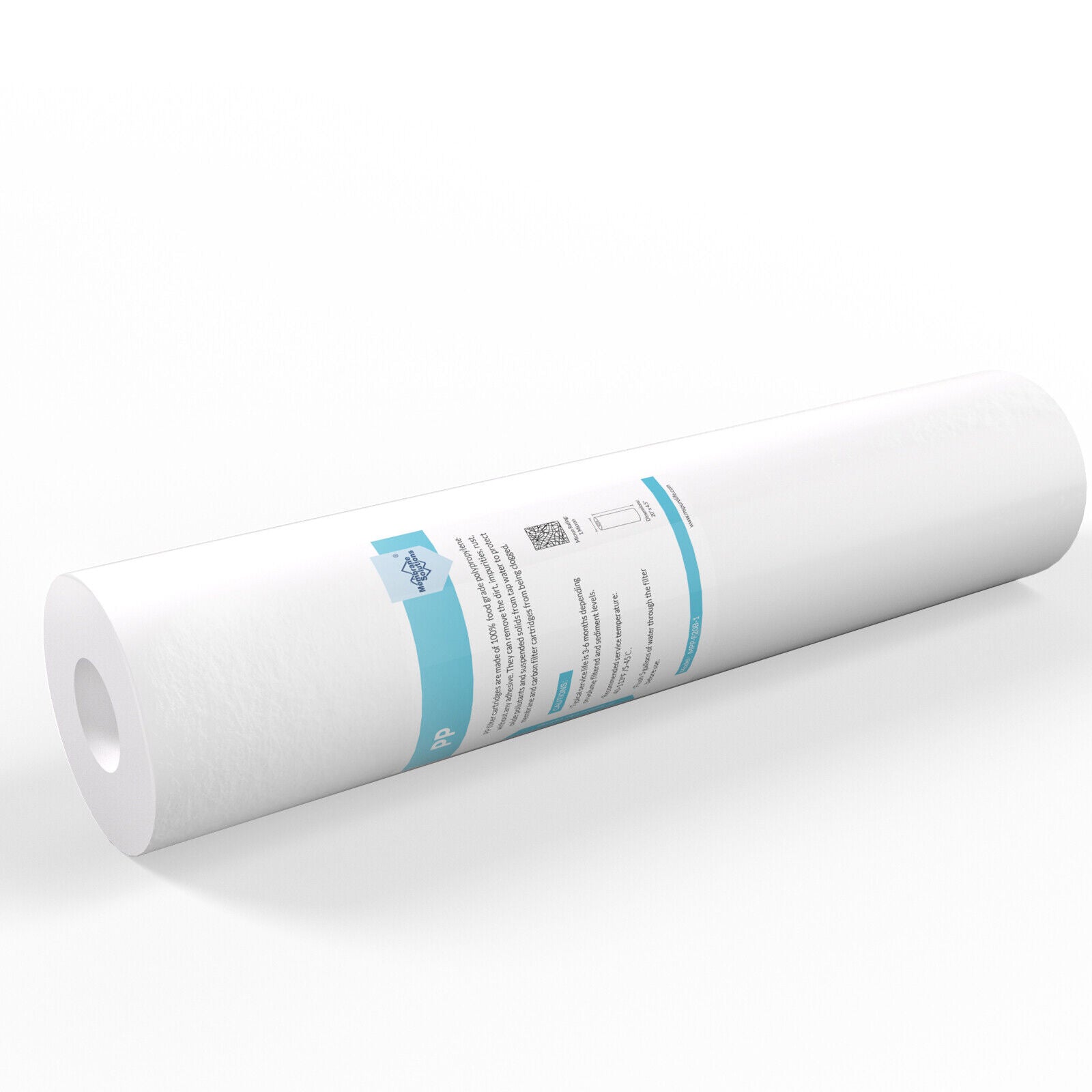

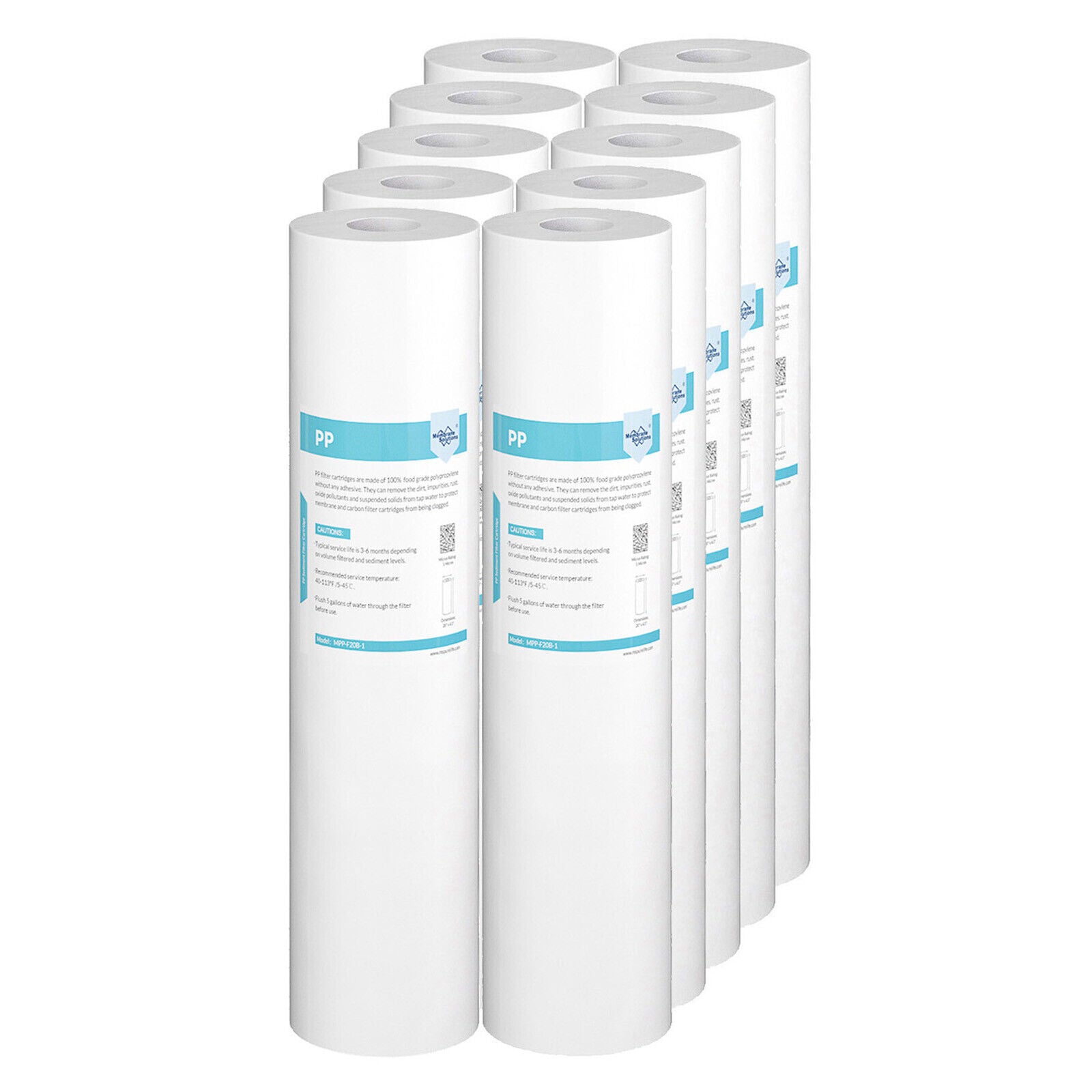

Melt-Blown Sediment Water Filter Big Blue Cartridge 1/5 μm 20"x4.5"

Standard Universal Filter Cartridge:

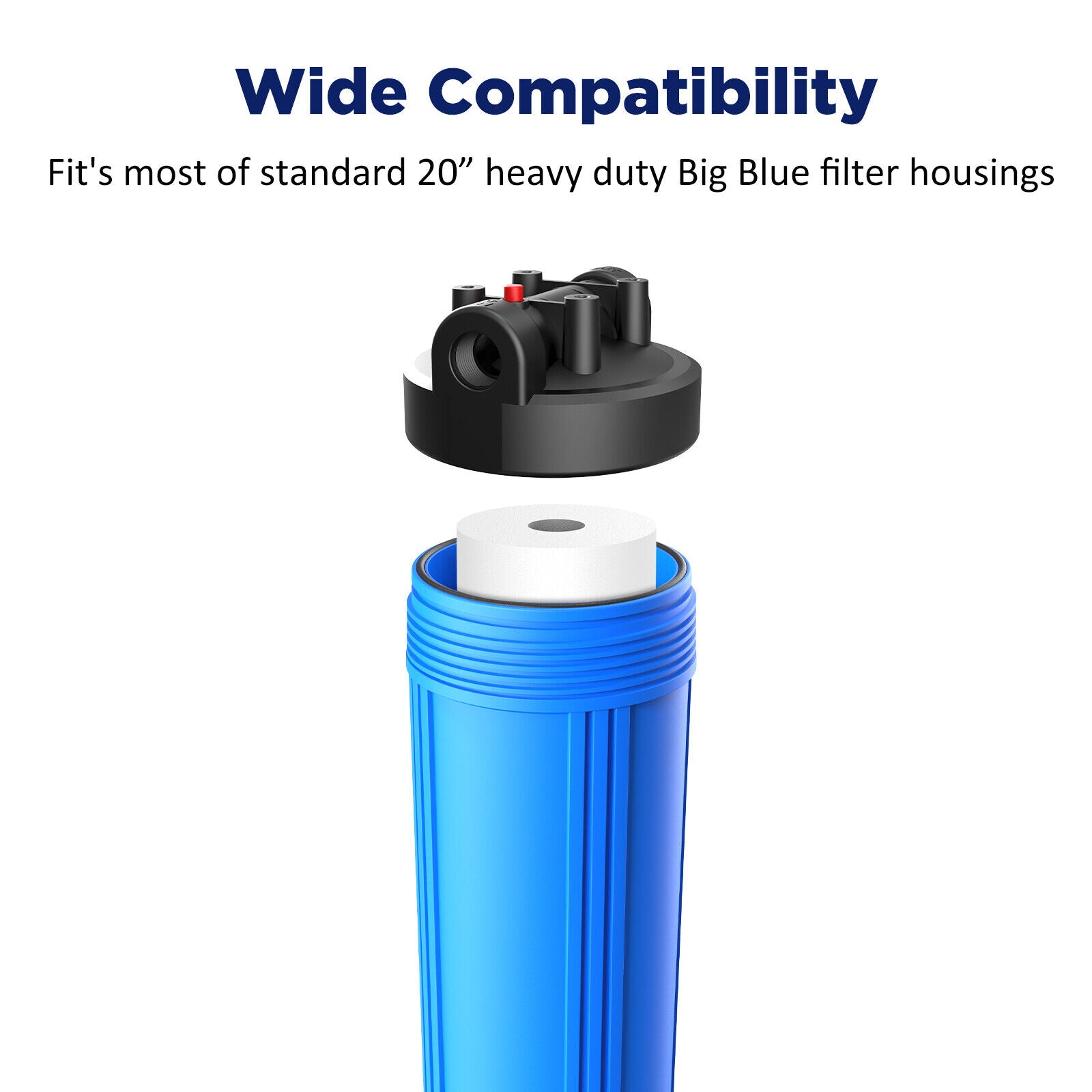

1 Micron / 5 Micron replacement sediment water filter cartridge, 20" Length by 4.5" Outside Diameter. Compatible with a wide rage of industrial filter housings, fit for whole house filtration system.

Higher Dirt-Holding Capacity:

Three separate gradient density layers enhance cartridge performance. It can remove more contaminants, large and fine particles from well/city/municipal water, such as sand, dirt, silt, iron and rust particles. Does a better job and more capacity than the 10" filter.

Longer Service Lifetime:

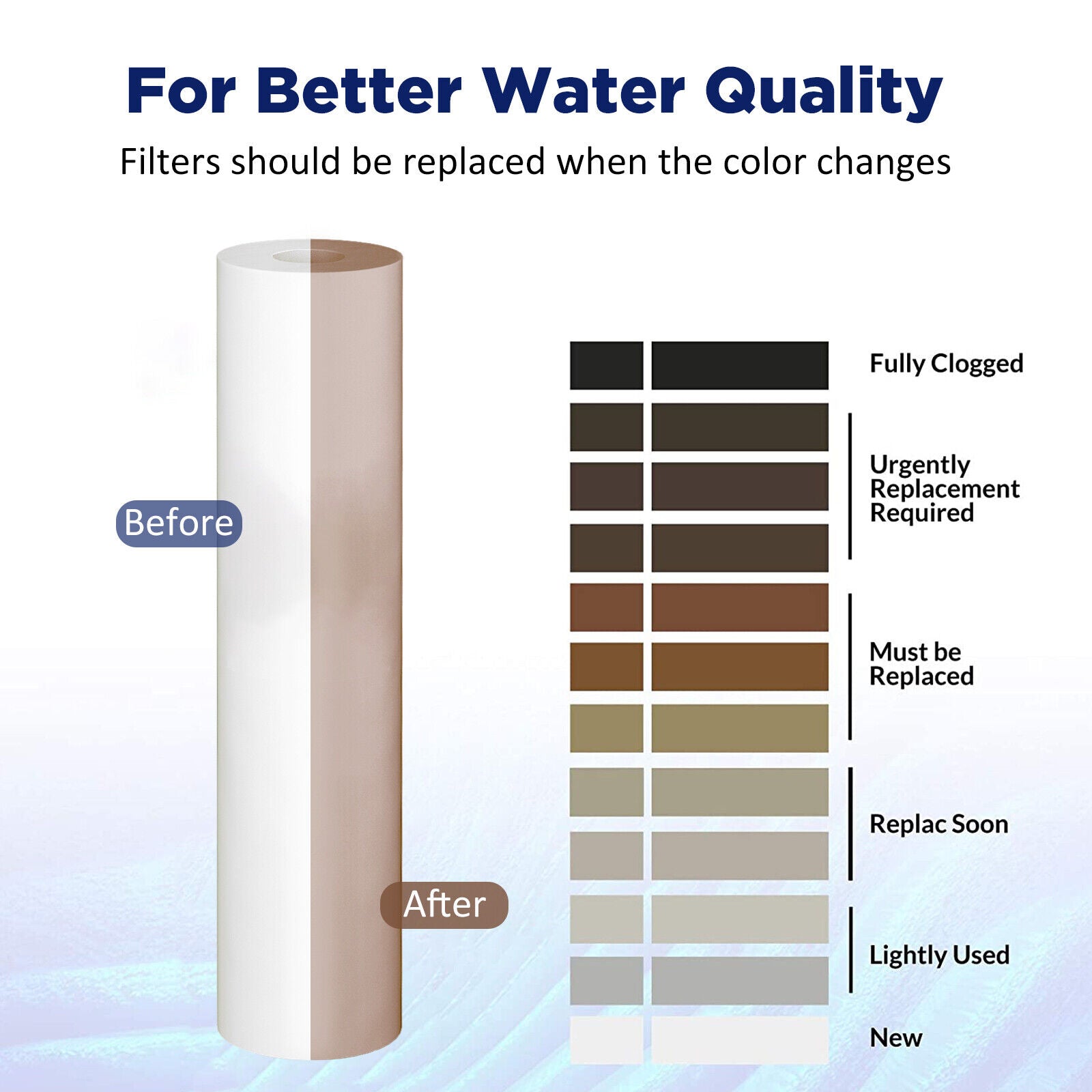

For better water quality, recommended replace TWO or THREE times a year, depending on the quality of the original water source and application type. Recommended change out differential pressure is 30psi(2.1bar).

Protect Process Equipment:

Designed to prevent dirt and sediment particles from entering and clogging the main filter unit. Be sure to install these before your water softener, well water filtration system, hot water heater, etc. Maximum operating temperature is 176˚F(80˚C)

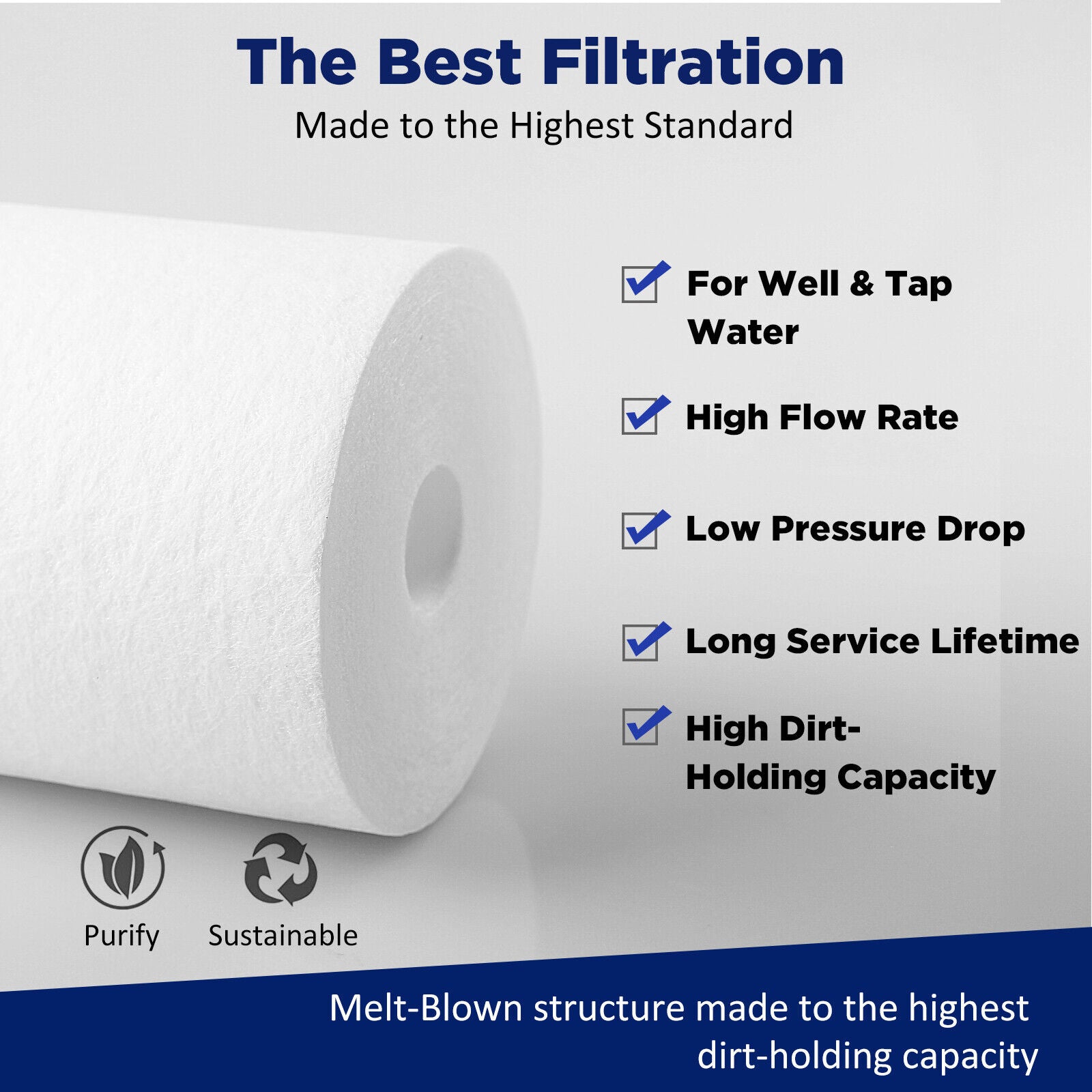

Multi-Layer Structure:

Three separate gradient density layers enhance cartridge performance, higher dirt-holding capacity than the similar sized sediment water filter.

Specification:

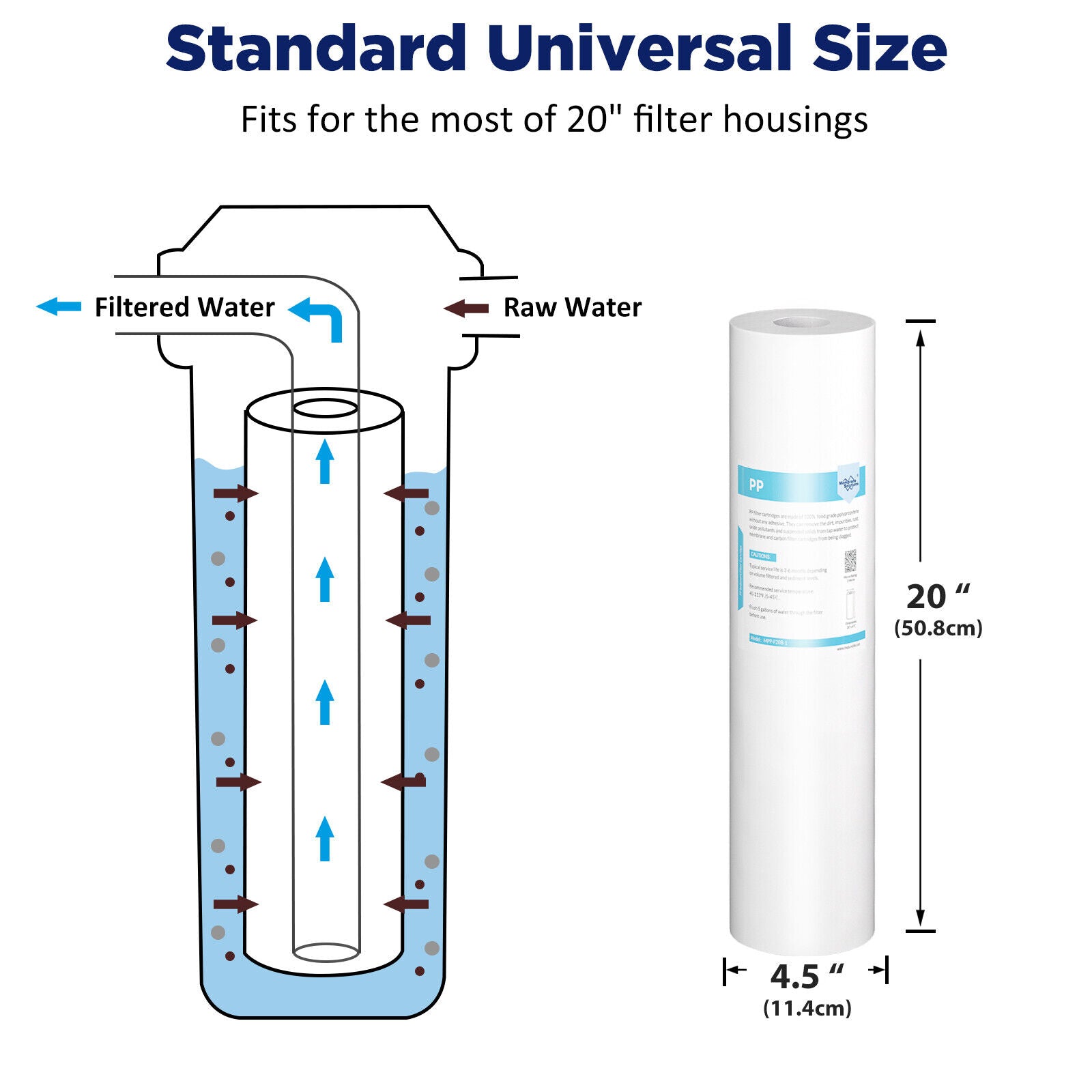

Dimensions: 20 inch x 4.5 inch ( 508mm x 115mm)

Inner Diameter: 1.1 inch ( 28mm)

Filter life: 20000 - 30000 gallons

Micron Rating: 1 Micron / 5 Micron

Flow Rate: 12 GPM

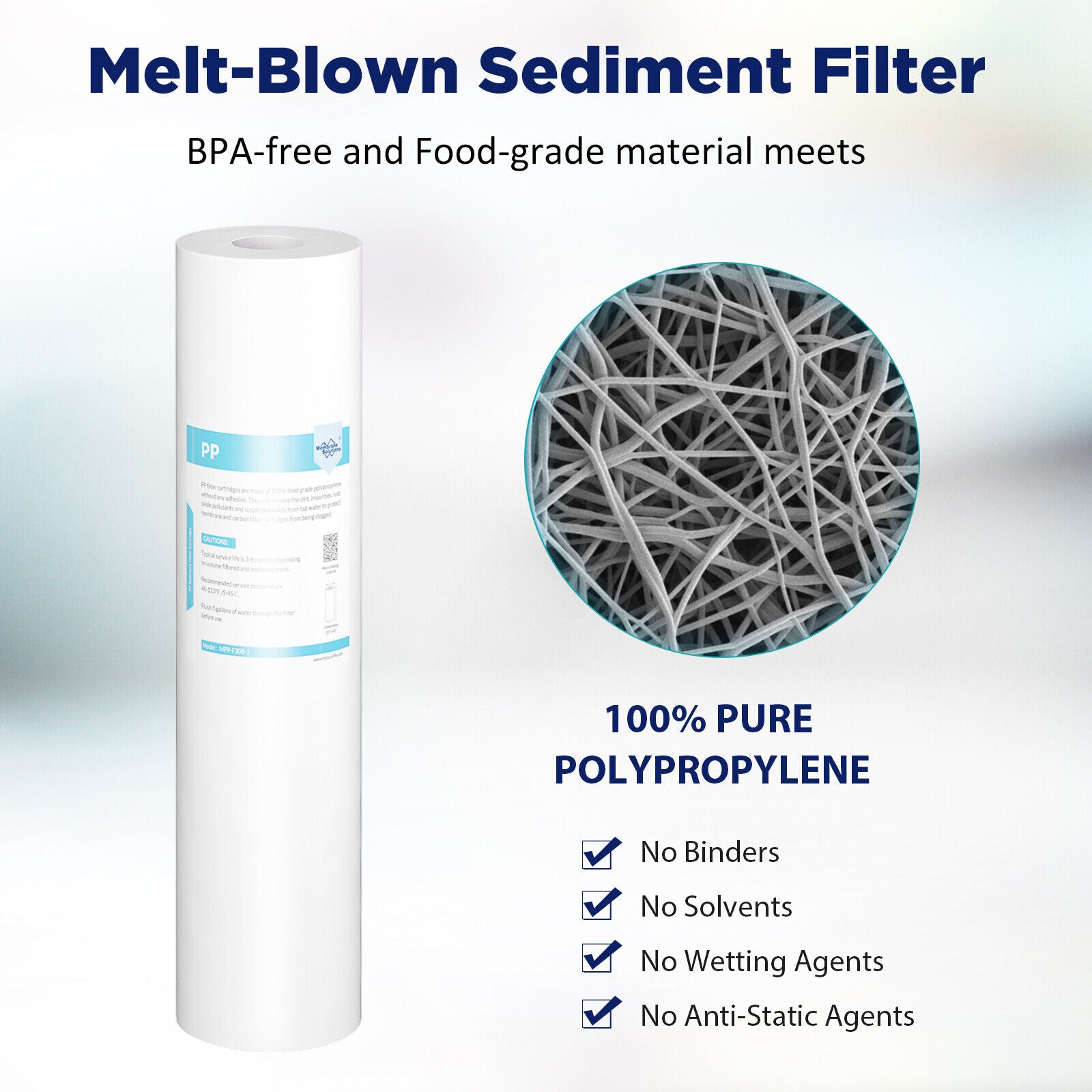

Material: 100% Polypropylene

Max.Operating Temperature: 176℉

Max.Operating Pressure at 68℉: 50psi

Max.Operating Pressure at 158℉: 15psi

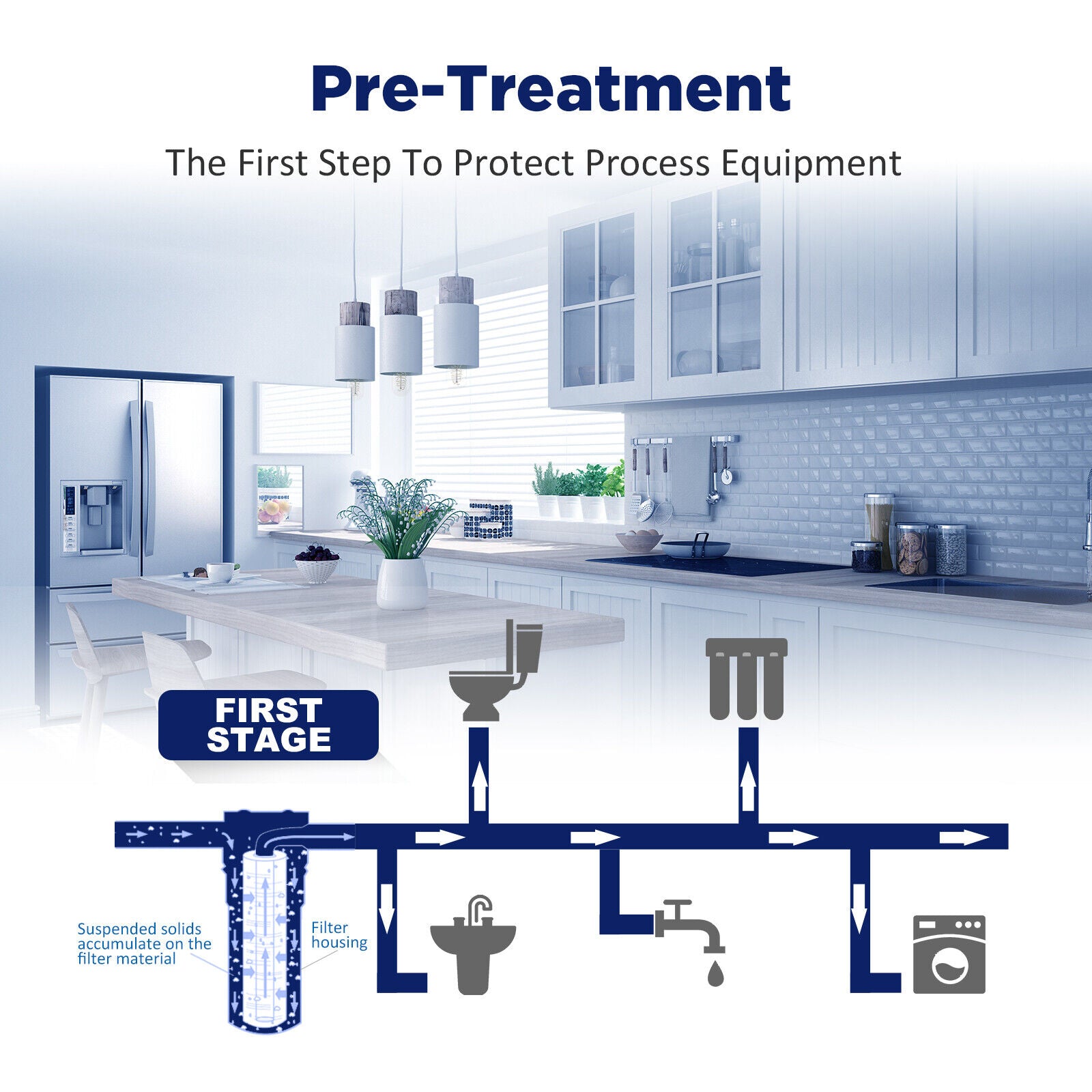

What is a sediment water filter cartridge?
It's usually placed as the first stage of the water filtration system to remove rust, iron, sand, silt and particulates from water. As the first line of defense in the filtration system. It's a best choice for removing fine sediment from well water / hard water / city water / municipal water / drinking water, etc.
