Reverse Osmosis Membrane with Membrane Housing Set DIY RO System

Sale price$34.99

GPD: 36 GPD

Membrane Solution® Reverse Osmosis Membrane Housing Set with Water Filter

Reverse Osmosis Membrane Housing

What Is in The Housing Reverse Osmosis Membrane Water Filter Set

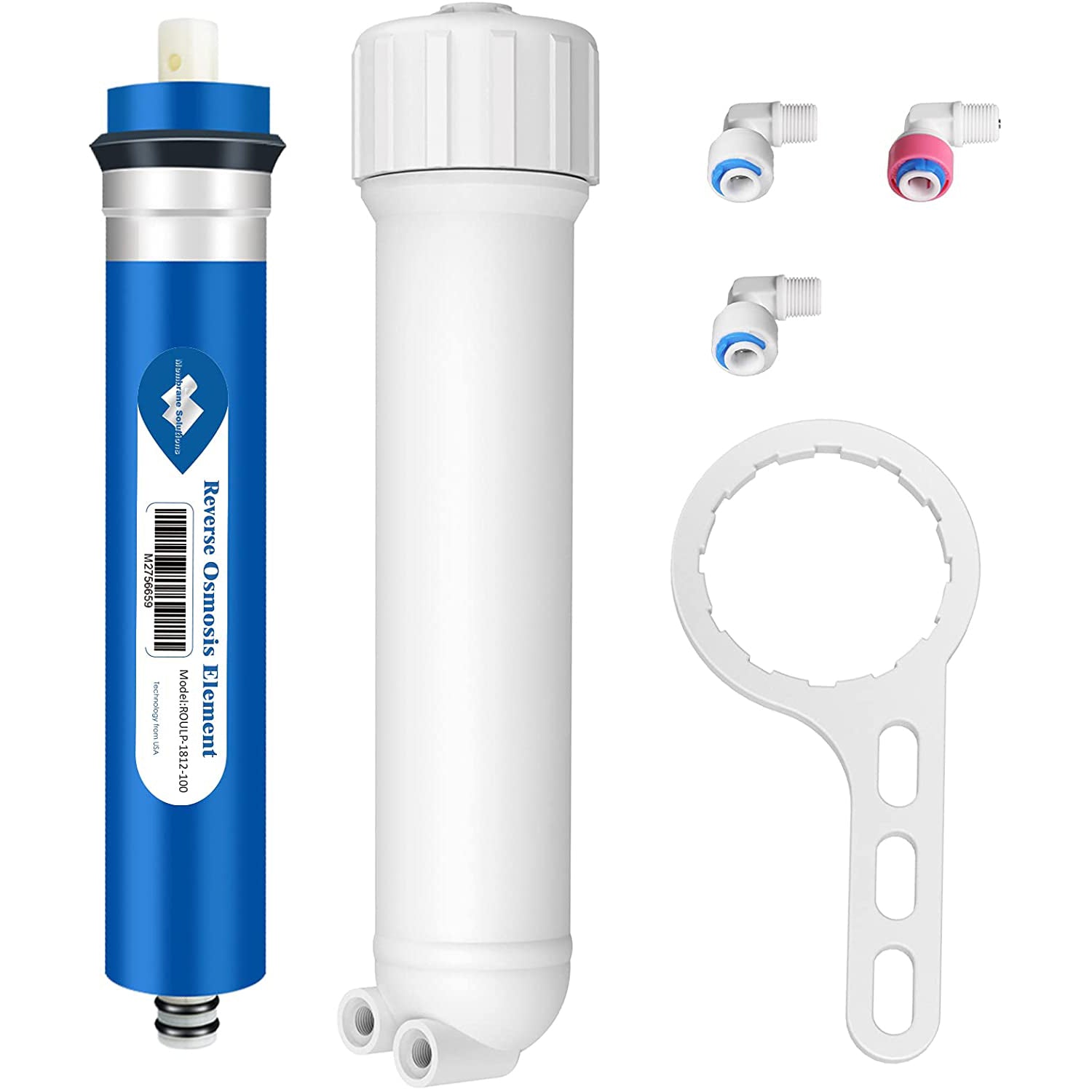

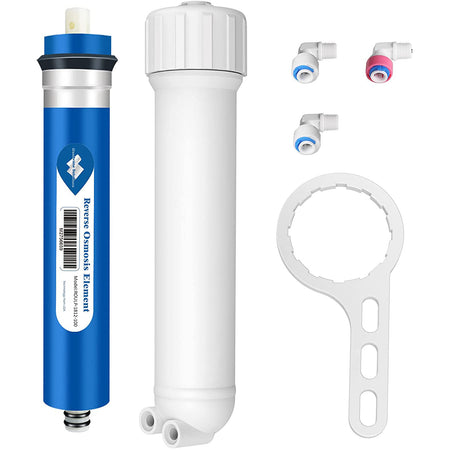

The housing reverse osmosis membrane water filter set includes an RO membrane, 12" X 2.0" membrane housing, wrench, and quick-connect fittings.

ListDescription
1*150GPD RO membraneThe 150GPD RO water filter membrane boasts high filtration capacity, producing up to 36 gallons of purified water daily.
It effectively filters out impurities such as sediments, residual chlorine, heavy metals, and pesticides.
Improves the taste and odor of water.
More energy-efficient and environmentally friendly: Replacement is recommended every 6 months to one year.
The 150GPD RO membrane is compatible with various residential water filtration systems.
1*Membrane housing 12" X 2.0"The reverse osmosis (RO) water filter housing membrane is made of 100% food-grade Thin Film Composite (TFC) material, with ultimate purification performance and high permeate flow. It has been independently third-party tested to meet NSF/ANSI 58 standards, providing safe and clean drinking water.
1*Wrench

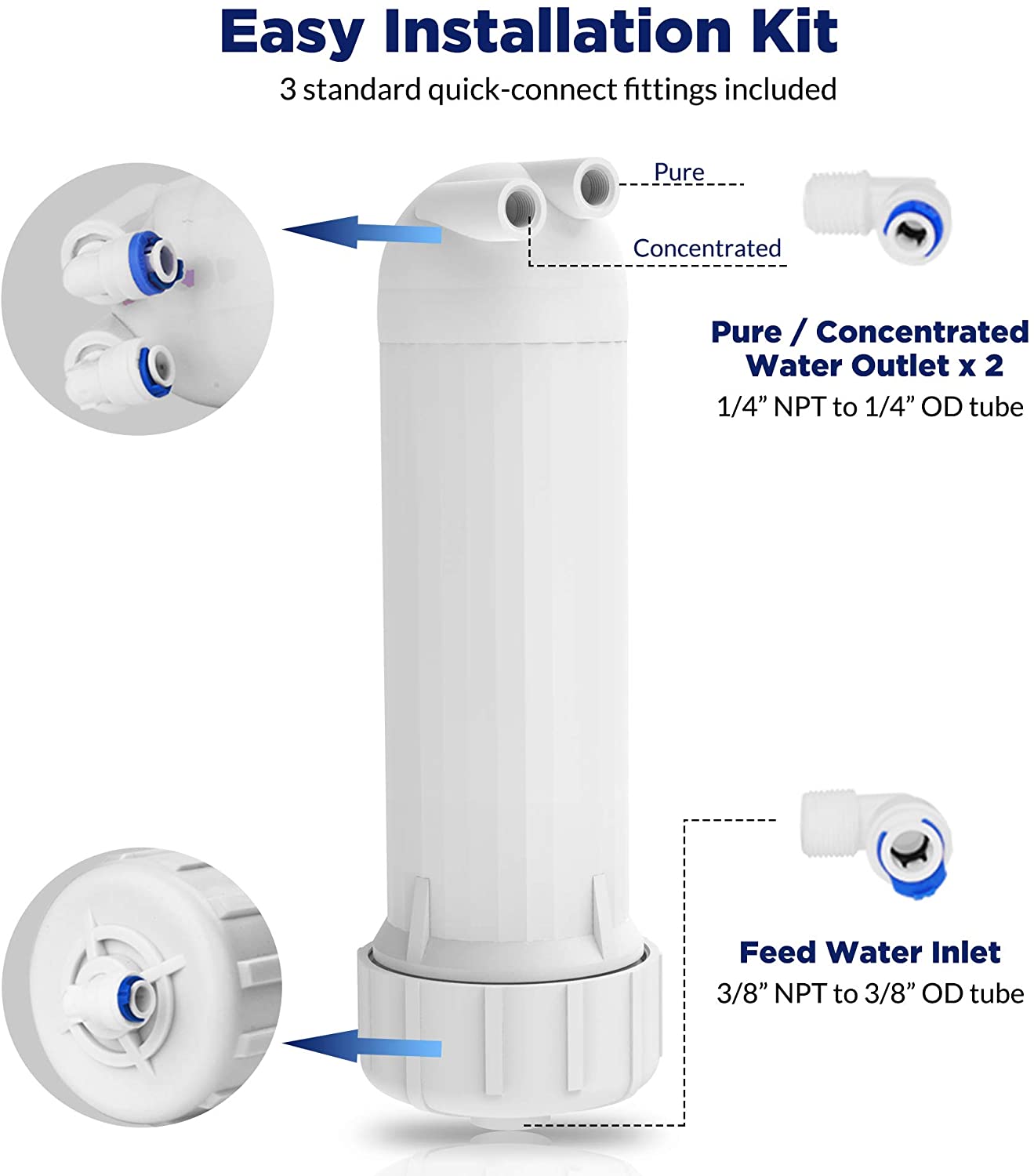

3*Quick connect fittings
Housing Reverse Osmosis Membrane Water Filter

Perfect Reverse Osmosis Membrane Housing for DIY Water Filter System or Maple Syrup Production

The perfect Reverse Osmosis Membrane Housing designed for DIY Water Filter Systems or Maple Syrup Production considers durability, efficiency, and versatility in its design. It ensures long-lasting performance even in demanding environments. The fiter housing is compatible with standard RO membranes and provides a secure enclosure for optimal filtration and syrup concentration processes. It is highly suitable for DIY water filter system enthusiasts or small-scale producers.

Maple Syrup Production

The RO membrane housing is equipped with a 0.0001um membrane, which is 50 times smaller than the pore size of heavy metals. It effortlessly removes over 100 types of contaminants from water, including heavy metals, harmful minerals, and other soluble salts. With a contaminant removal rate of up to 99.99% and an effective removal rate of up to 97% for total dissolved solids.

  • Easy to install and maintain
  • Durable construction
  • Made from healthy and safe food-grade materials
  • Compatible with standard RO membranes
RO membrane housing

RO System Membrane Housing with 97% High Contaminant Rejection

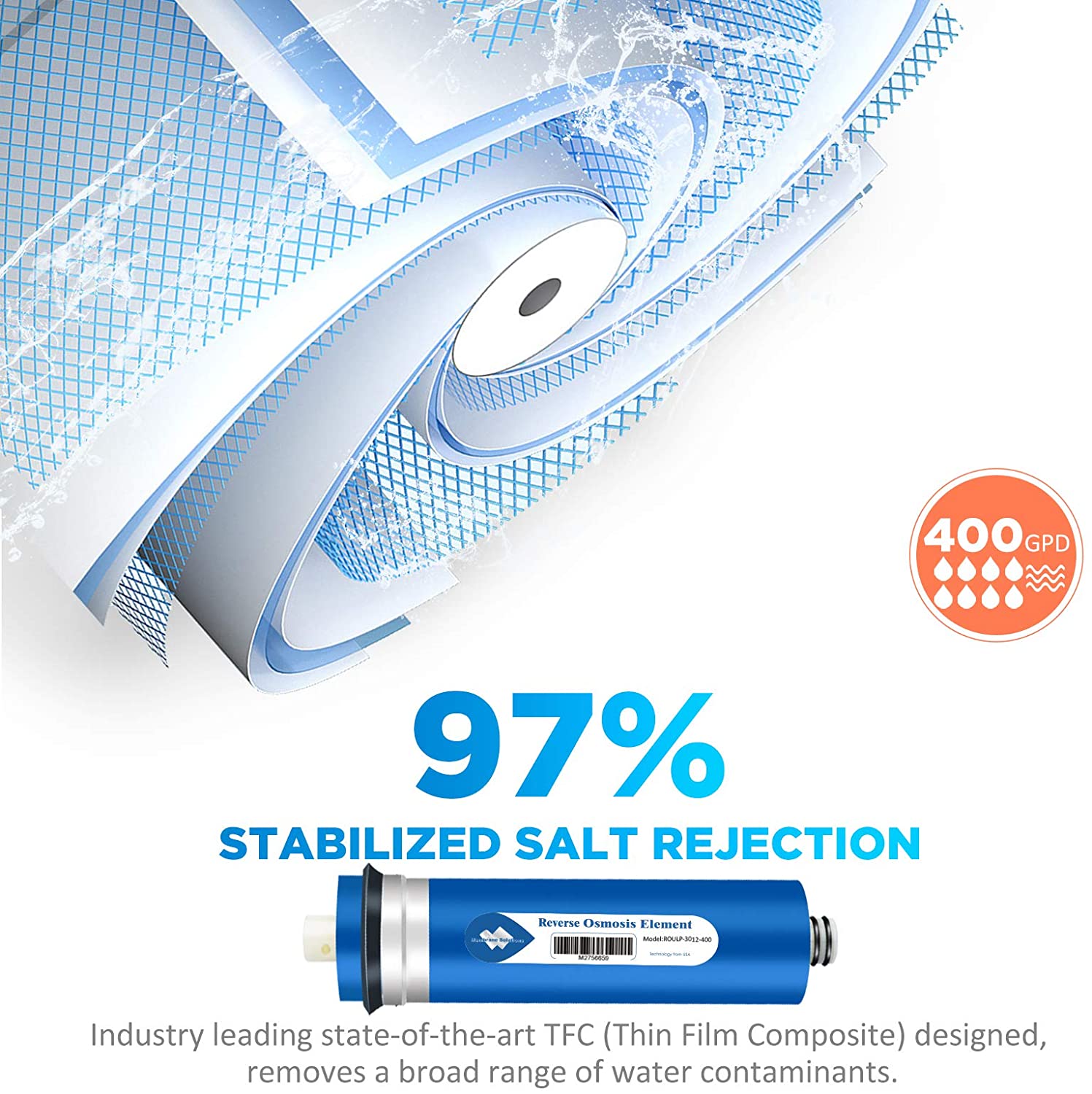

Membrane Solutions RO membranes boast a stable salt rejection rate of up to 97%. Through a TFC membrane layer of 0.0001 micrometers, over 99% reduction of hundreds of impurities is achieved, including heavy metals (fluorides, calcium, magnesium, lead, colloids, chromium, and nitrates), organic substances such as bacteria and viruses, as well as harmful minerals including other soluble salts present in water sources.

RO membrane housing

RO Membrane Housing is Compatible with Most Water Purifiers

200, 300, 400, 500, 600 GPD RO Membrane: Industry-standard size of 12" x 3", designed for compatibility with standard 2812/3012 residential-style RO membrane housings with a 3-inch internal diameter. 36, 50, 75, 100, 150 GPD RO Membrane: Industry-standard size of 12" x 2", designed for compatibility with standard 1812/2012 residential-style RO membrane housings with a 2-inch internal diameter. Compatible with models such as: APEC Water ESSENCE series: RO-90, RO-Hi, ROES-50, ROES-100, ROES-UV75, ROES-UV75-SS, RO-PERM, RO-PH90, ROES-PH75, ROES-PHUV75, MEM-ES-50, MEM-ES-75. AQUANOVA: TW30-2812-200G. AXEON: TF-3012-500. Express Water: FLTMEM300, FLTMEM600.

DIY Water Filter System

The Best easy-to-install Ro Membrane and Housing Kit

Ro Membrane and Housing Kit

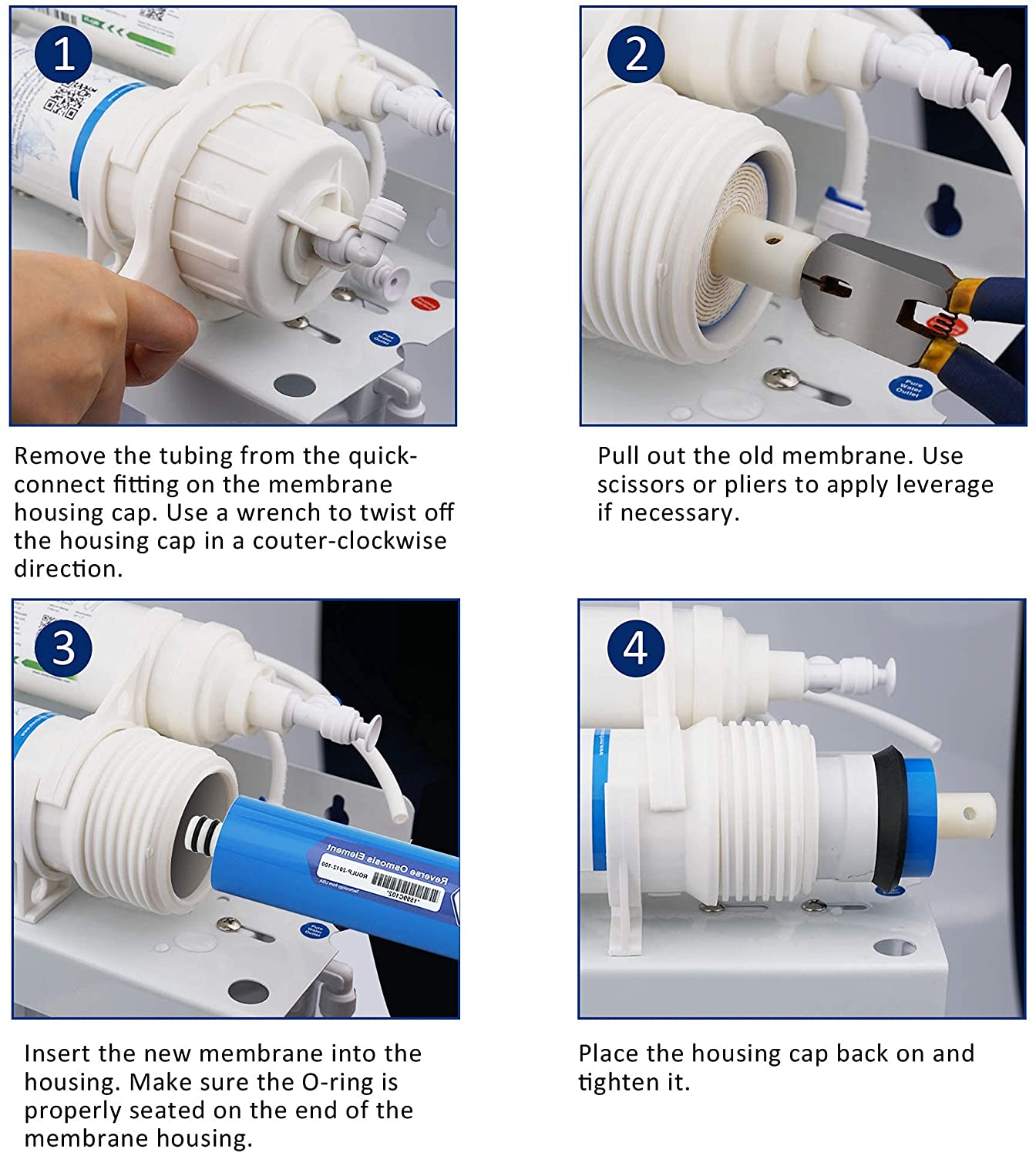

Membrane Solutions® reverse osmosis membrane housing is relatively simple to install and use, ensuring that the new RO filter housing is compatible with the old water filtration system. The water filter housing installation process consists of the following four steps:

  • Remove the tubing from the quickconnect fitting on the membrane housing cap. Use a wrench to twist off the housing cap in a couter-clockwise direction.
  • Pull out the old membrane. Use scissors or pliers to apply leverage if necessary.
  • Insert the new membrane into the housing. Make sure the O-ring is properly seated on the end of the membrane housing.
  • Place the housing cap back on and tighten it.

PP, GAC, CTO, RO membrane---No need to disconnect hoses or water lines. Simply twist off the filter housing, replace the filter, and twist it back on. - no plumber necessary!

Ro Membrane and Housing

After-sale Protection for RO System Membrane Housing

  • 24-7 online service:Our customer service groups are online 24 hours all days for you, after your quotation, you will get our reply in a minute.
  • Fast machining process:We have several producing lines, each order is usually finished within few days. And we make sure every order will be in the best quality for you
  • Fast delivery timeOnce we have received your order, it will be starting within a couple hours, and be 4、finished within 7 days. And after package, it will approach to your door within 7days.
  • Manufacturer Warranty: 1 year

Parameter of Ro Membrane With Housing

Table header 0Polyamide Thin-Film Composite
Product DimensionsPolyamide Thin-Film Composite
Item Weight14.4 ounces
External Testing CertificationANSI, NSF
Product BenefitsReduces TDS, ideal for drinking, saltwater aquariums and maple sap processing before boiling.
ASINB07H2ZCFFR
Item model numberROSL1812-150G
Maximum Operating Temperature113℉ (45℃)
Maximum Operating Pressure200 psig (13.8 bar)
Maximum Operating Pressure2.0 gpm (7.6 lpm)
SDI5 (Maximum Feed Silt Density Index)
Free Chlorine Tolerance< 0.1 ppm
RO System
5 Stage RO Water Filter for Drinking Water Under Sink Reverse Osmosis Filter System

RO Membrane Specifications

Filter modelMembrane Solutions 150 GPD Membrane
Size12" x 1.8"
Flow Rate150 GPD @ 60 psi water pressure
Average NaCl Rejection rate97%
Fits the following BrandsDow Filmtec, GE Osmonics, U.S. Water ( US Water ), Culligan, Ametek, US Filter, American Plumber, Kinetico, Watts, and more.
RO  Filter System ModelCountertop Reverse Osmosis Filter
RO Membrane Specifications.jpg__PID:1bcc4ace-79e2-453d-b1df-422c11a156ef

RO Membrane Housing Specifications

MaterialFRP (Fiber Reinforced Polypropylene) + ABS
Outside Diameter3.03"
Length12"
Connect TypeThread
Outlet Size1/4"
Inlet Size1/8"
Seal MaterialNBR
Burst Pressure Test500 PSI
Water Hammer Test0-150PSI, 100000 times back to the circle
Fits following RO membranes24 GPD / 36 GPD / 50 GPD / 75 GPD / 100 GPD / 150 GPD
RO Membrane Housing Specifications.jpg__PID:4ace79e2-653d-41df-822c-11a156efc89c
