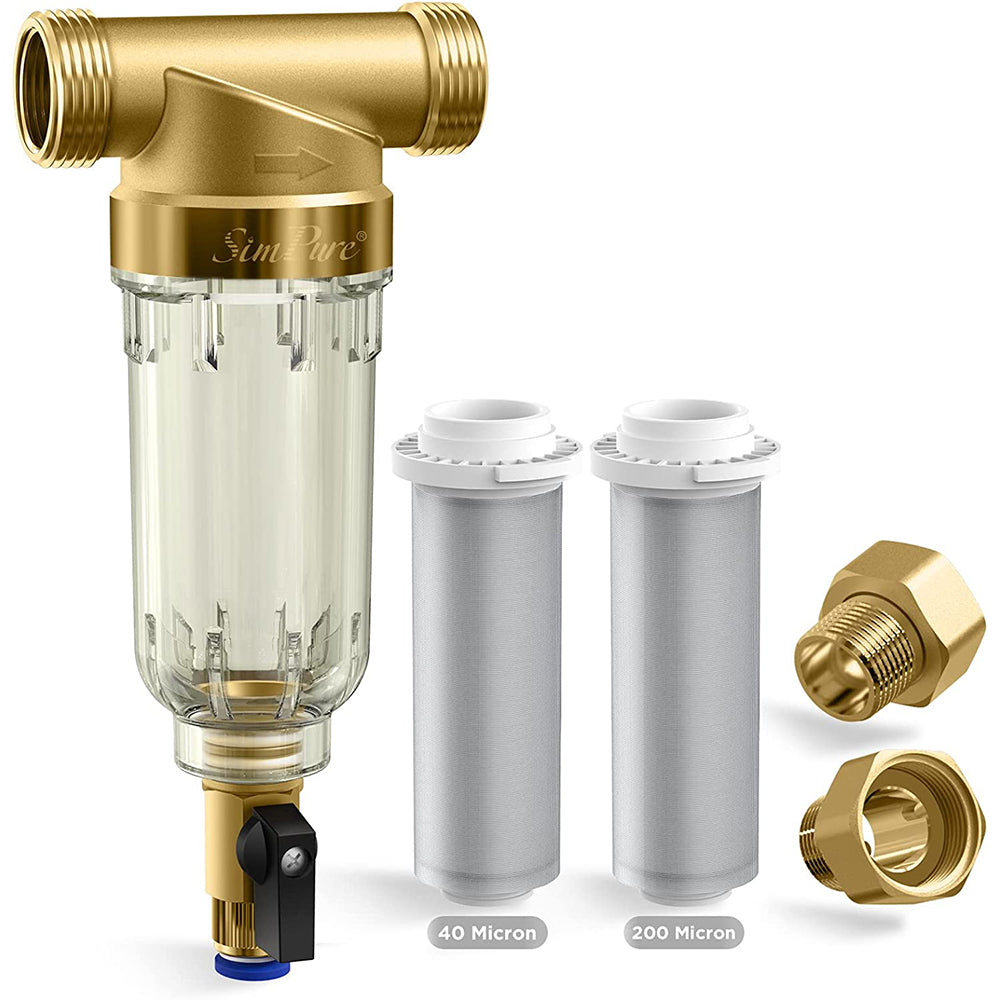

DC5P Whole House Spin Down Sediment Filter | 40/200 Micron, Reusable

In stock
SKU: DC5P

Model DC5P
Material Lead-free copper
Food grade polypropylene
Easily be Connected MNPT1”& MNPT %”
FNPT %”
Max Flow Rate 20Gallons (75.7L) / min

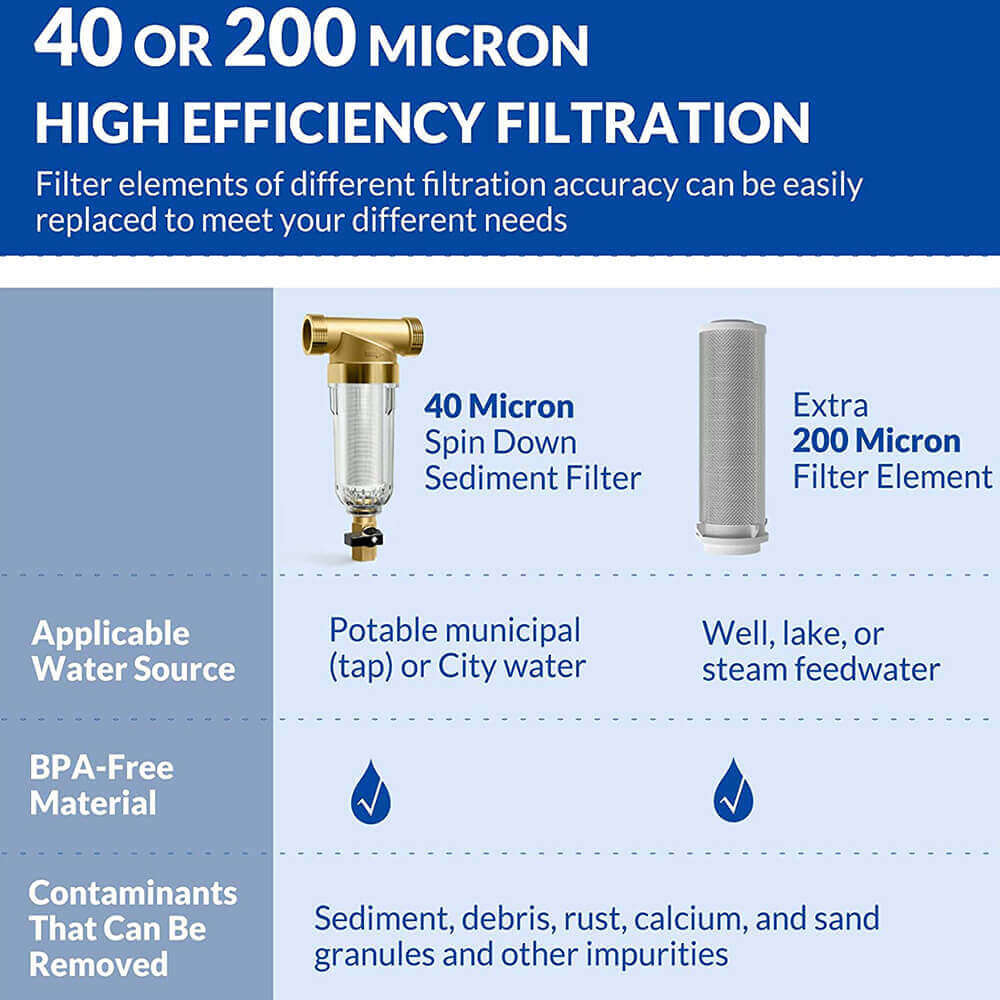

Filtration Accuracy 40 Micron or 200 Micron
Pressurre range 30-90 psi (200-600 kPa)
Water Temperature 41-104 °F (5 - 40 °C)
Backwash cycle 15~30days
Depend on the water quality
Weight 2.6 1bs (1.2kgs)
Dimensions 11.1x5.8x4.6in
282x148x117mm
MSA3S smart Air Purifier for allergies

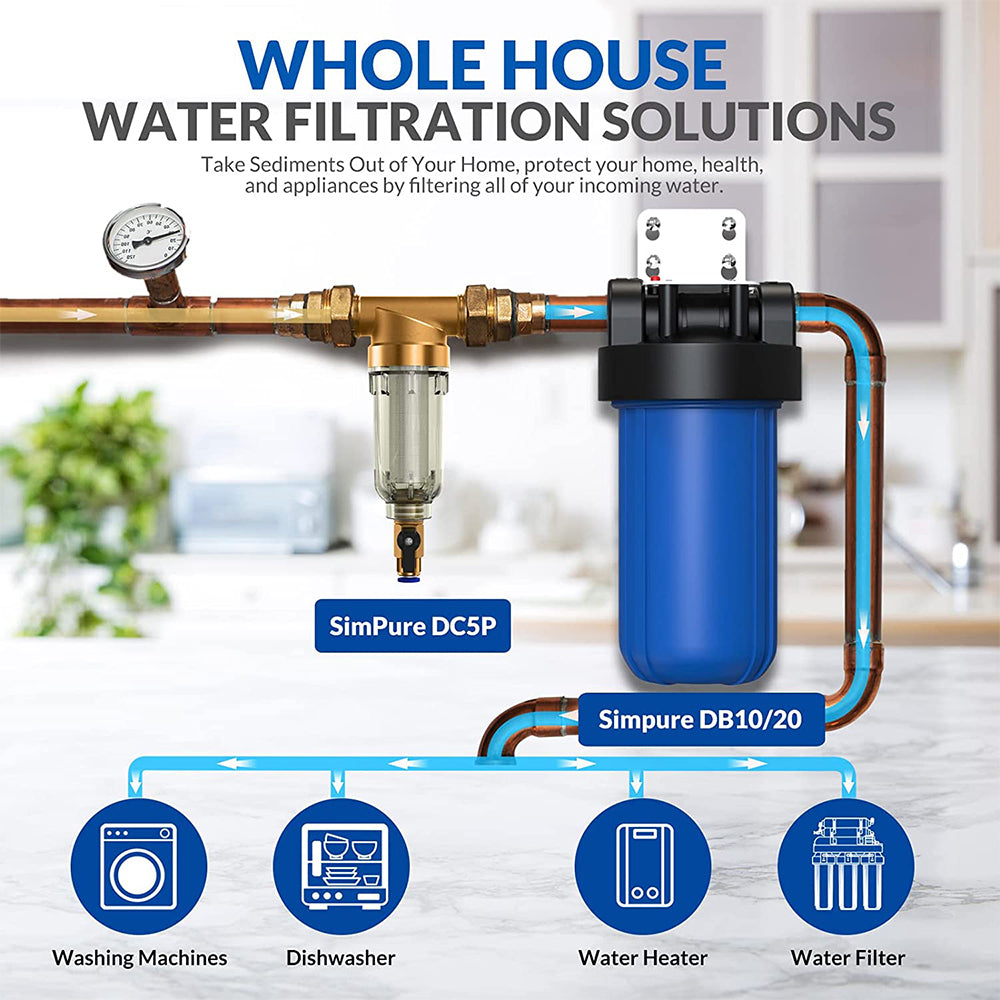

Well Sediment Filter is First Layer of Whole House Filtration

A sediment filter is typically the first stage of a whole house filtration system. Its primary function is to remove large particles such as sand, silt, rust, and other sediment from the water before it enters the house. By removing these larger particles, the sediment filter helps to protect and prolong the life of other filters in the system, as well as any appliances that use water such as dishwashers, washing machines, and water heaters. Additionally, it can improve the taste, smell, and overall quality of the water by removing sediment that may cause odor or discoloration.

wifi allergies air purifier

Also A Washable & Reusable Spindown Sediment Filter For Well Water

The washable and reusable spindown sediment filters available that are designed specifically for well water applications. These filters are typically made of a durable and washable stainless steel mesh or a plastic mesh that can be easily removed, cleaned, and reused multiple times.

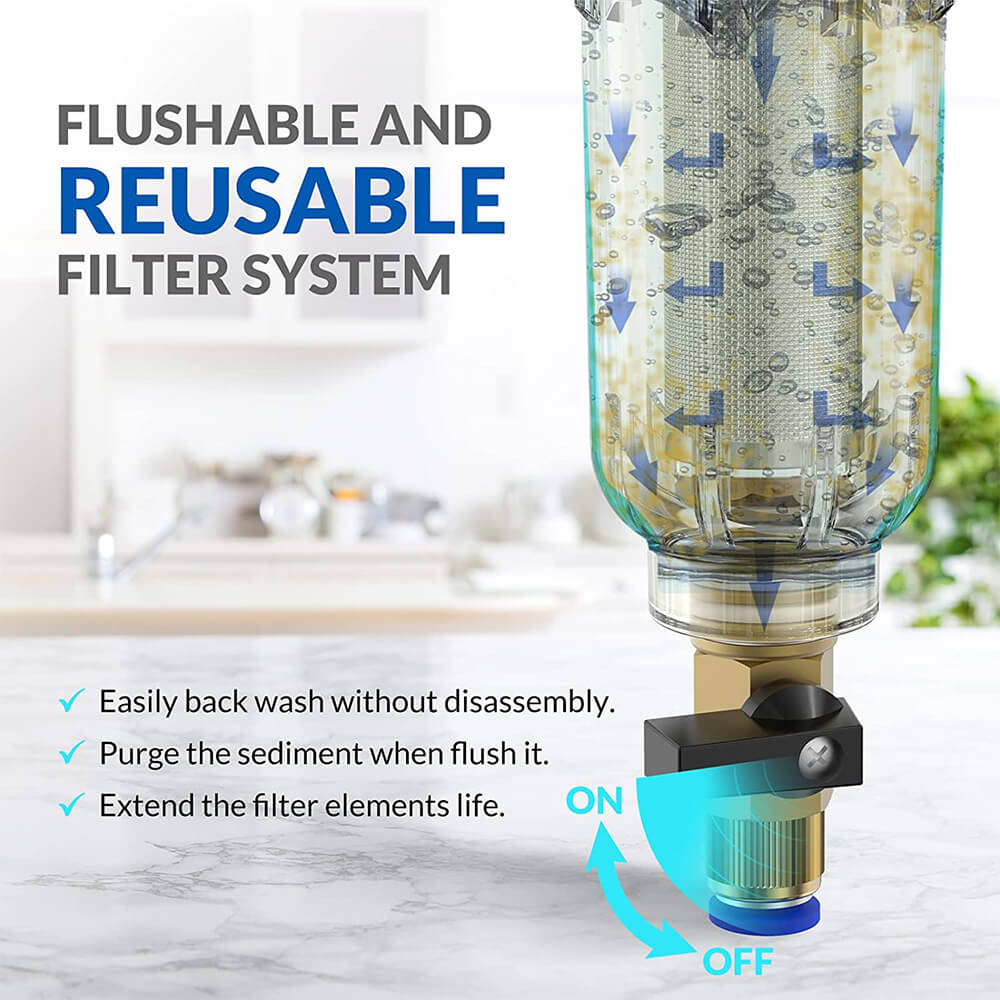

Spindown sediment filters work by capturing sediment and other large particles that are found in well water as it flows through the filter. These filters typically have a clear housing that allows you to see the amount of sediment buildup, making it easy to know when it needs to be cleaned. When it's time to clean the filter, you simply turn off the water supply, remove the filter housing, and rinse the filter screen under running water. Once the screen is clean, you can reinstall the housing and turn the water supply back on.

One benefit of using a washable and reusable spindown sediment filter is that it can help to reduce the ongoing cost of filter replacement. Instead of having to replace the filter cartridge, which can add up over time, you can simply clean and reuse the same filter multiple times before needing to replace it. This can save you money and also reduce waste.

This reusable whole house sediment water filter works with DB10/DB20/DB1025, Culligan(WH-HD200-C, HD-950A, HF-360A), Pen-tek 10" BB filter housings, APEC HBB-10, DuPont WFPF13003B, GE GXWH20S, etc.

wifi air purifier for allergies

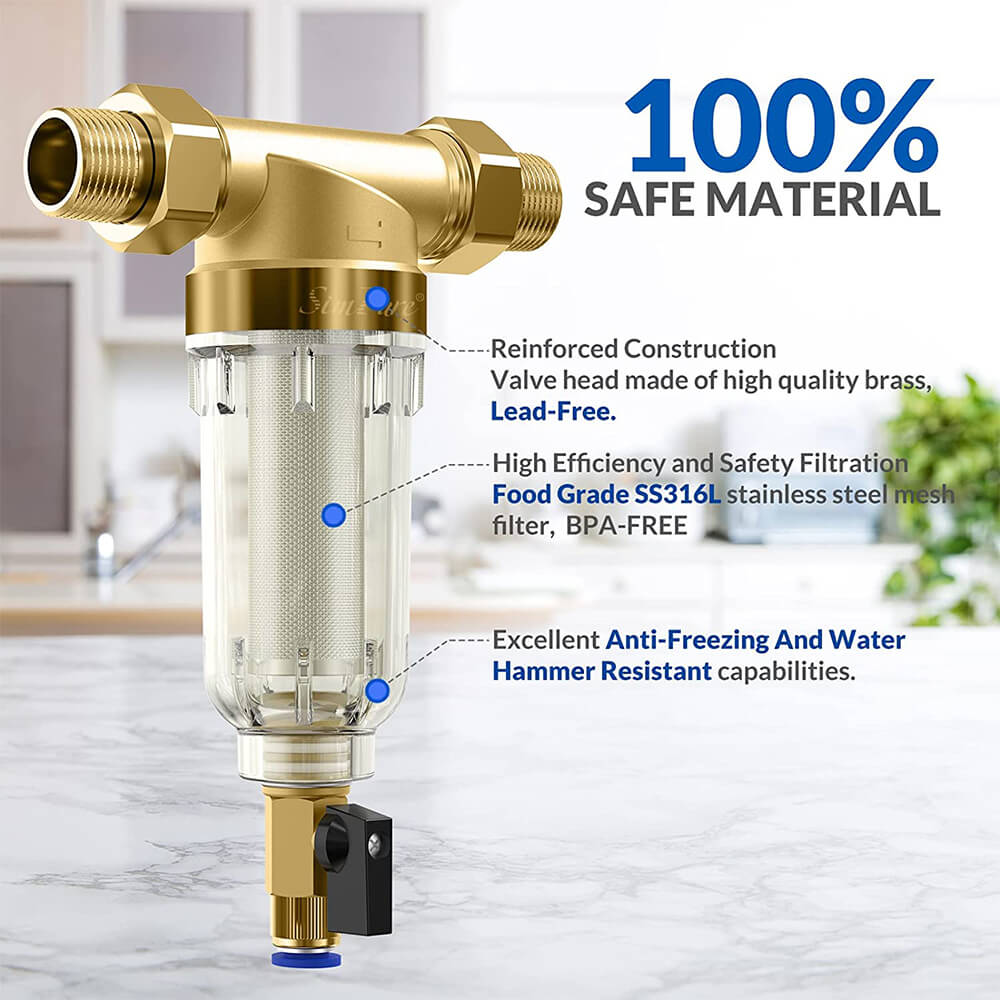

A 100% Safe Material Spin Down Sediment Filter

This spin down water filter is certified by SGS. The 40 Micron food-grade stainless steel mesh spin down sediment filter can reduce and capture particles larger the 40μm (half the thickness of a human hair!) from entering your home. The valve head is made of high-quality brass. The transparent screen filter bowl can withstand a burst pressure of more than 725 psi (5Mpa) and has excellent anti-freezing and water hammer resistant capabilities.

A 100% safe material spin down sediment filter is an effective and reliable way to improve the quality of well water by removing large particles that can cause discoloration, odor, and other water quality issues. It can also help to protect other water treatment systems and appliances in your home by preventing sediment buildup in pipes and fixtures.

The clear housing of the filter allows you to see the amount of sediment buildup, so you can easily know when it needs to be cleaned. Cleaning the filter is simple and can be done by removing the filter housing and rinsing the screen under running water.

Air Purifier for Pet Allergies

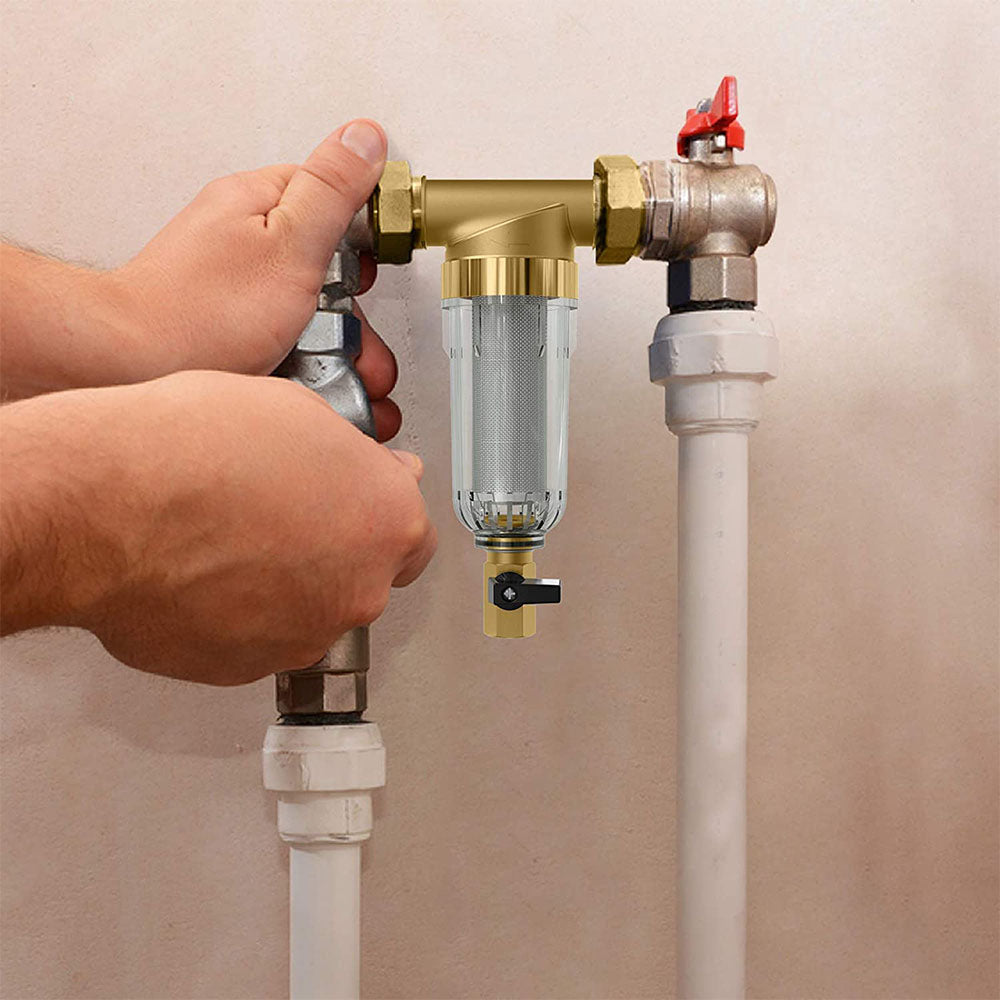

Spin Down Water Filter with Flexible Installation Connections

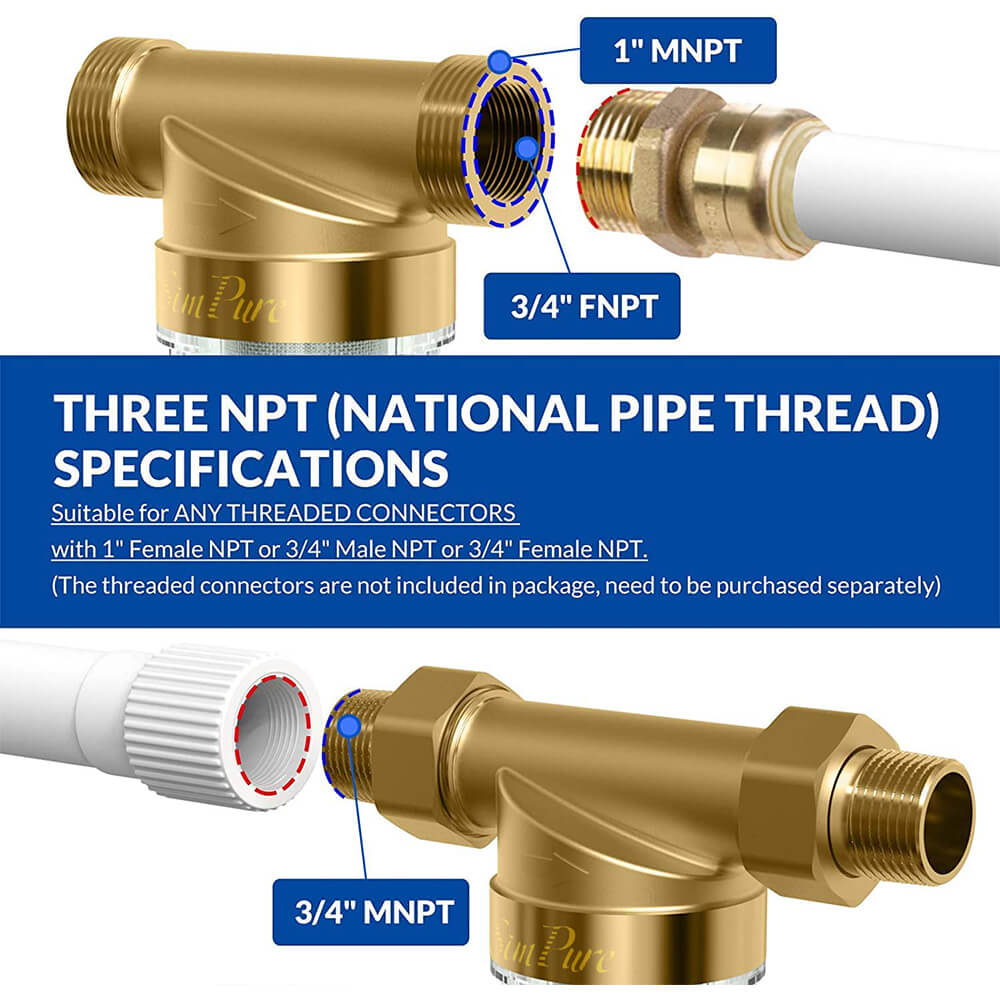

The reusable whole house sediment water filter is supplied with 1" Male NPT, 3/4" Female NPT and 3/4" Male NPT. It is suitable for ANY THREADED CONNECTOR with 1" Female NPT or 3/4" Male NPT or 3/4" Female NPT. (The threaded connector is not included in the package, it needs to be purchased separately according to the specifications of the copper/PEX/CPVC water pipe).

air purifier for pollens

What Can Spin Down Water Filter Remove?

With DC5P spin down water sediment pre-filter, you can have peace of mind that it can purify the water coming into your home. It can remove: Sediment Sand granules Rust Calcium Other impurities

air purifier for pollens
SpecificationsTable header 1
Filtration Type Well Water Sand/Sediment
Flow Rate 3000-4000 L/H
Filter Manual Cleaning Cycle3-6 Months
Backwash Cycle15-30 Days
MaterialMetal
Contaminants FilteredChlorine
Filter Precision40 Micron
Replacement Filter TypeFaucet Mounted Filter
Compatible ModelFor Aqua Optima Evolve, Brita Maxtra+, Samsung Aquarius
CertificationCE, GS, LFGB, ROHS, SASO
